Integrated Veranda Drainage

The first heavy downpour after a veranda goes up is a reasonable test of how carefully it was designed. A roof of any size collects a surprising volume of water, and every litre of it has to leave somewhere — ideally quietly, into a drain, without pooling at the foot of a post or running back across the patio towards the door it was meant to protect. Drainage is invisible when it works and impossible to ignore when it doesn't.

At Roma Verandas, where the water goes is a question we ask during survey rather than on installation day, because the answer changes what gets manufactured. This guide explains how veranda drainage works, how much water is involved, and how the discharge is integrated with what already exists at your property.

How Much Water a Veranda Roof Sheds

It helps to start with the volume, because most people underestimate it. Rainwater systems on UK homes are commonly sized around a design rainfall of roughly 75mm per hour, which represents a short, intense summer downpour rather than ordinary drizzle. A veranda four metres wide by three metres in projection presents twelve square metres to the sky, and at that rate it sheds around nine hundred litres an hour — about fifteen litres a minute through the outlets.

That is not a trickle you can let fall onto the paving and hope for the best. Discharged onto a patio it splashes the wall, marks the slabs, washes jointing sand out over a few seasons and freezes into a sheet of ice exactly where people walk. Nor is the veranda always the only contributor: on many houses the main roof above sheds onto it, or an existing downpipe ends up discharging onto it, in which case the gutter is carrying its own area plus a share of the roof above.

The Fall of the Roof and Where It Runs

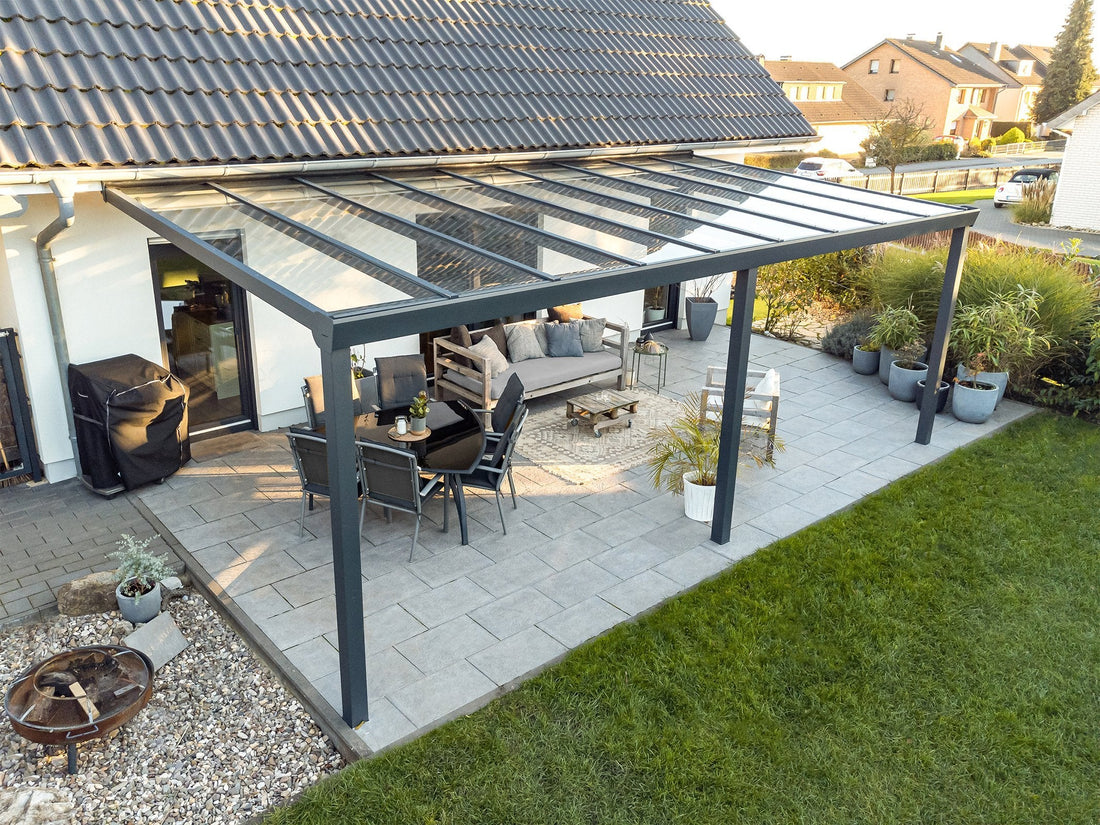

Every veranda roof is pitched, even the ones described as flat. A classic lean-to typically runs between nine and fourteen degrees, while a flat-roof design usually carries a shallow fall of two to five degrees. In both cases the roof is high at the house and falls towards the front beam, so water travels down the glazing bars into a gutter at the outer edge above the posts. That is the standard arrangement and the one that behaves best, because the water is always moving away from the building.

The roofing material affects how it gets there. A glass roof simply sheds off the surface, with the glazing bars channelling anything that runs sideways. Multiwall polycarbonate also drains condensation down its internal flutes, so the lower ends of the sheets must sit correctly over the gutter with their end closures and breather tape intact; if the flutes cannot drain, the sheet holds water internally and goes cloudy.

A reverse-pitch veranda, where the roof falls back towards the house, is a different proposition. It looks clean from the garden and keeps the front beam higher, but it needs a back gutter along the wall, properly flashed and drained out to one or both ends. It is workable, but there is less margin for a blocked outlet, because water backs up against the house rather than spilling harmlessly off the front.

Integrated Gutters and Concealed Downpipes

On modern aluminium systems the gutter is not a separate item bolted to the front. The front beam is an extruded box section with a drainage channel formed into its upper part and closed at each end with a sealed cap, so the result reads as a single clean beam rather than a beam with plastic guttering hanging off it. Most integrated gutters of this type run level along their length rather than falling to one end, taking their capacity from the size of the channel instead — a generous cross-section acts as a short-term reservoir, filling during the heaviest few minutes and emptying afterwards. Where the span is long, that channel is doing structural work as well: the reinforced gutter beam on the Nobile wide-span veranda, for example, is what allows a run of up to seven metres to be carried on two posts.

From there the water drops through an outlet formed in the base of the channel directly above a post, and down inside the post itself. Veranda posts are typically hollow extrusions of around 100 to 120mm square, with room to carry a downpipe of roughly 50 to 60mm, so nothing is visible from outside. At the bottom the water leaves through a spigot at the base of the post, and the direction it exits is a choice: front, side or rear, depending on where it is going next. A rainwater finishing cap tidies that outlet where the pipe emerges, which matters more than it sounds on a post standing in the middle of a patio.

This is why the conversation happens early. Outlet position, the number of outlets and the exit direction are all settled before manufacture. A three-metre-wide veranda with a post at each end usually drains through one post; a six-metre run will normally use both. Moving an outlet afterwards is not impossible, but it means working on a finished beam and a finished post, and the result is never as tidy.

Connecting to What Is Already There

Once the water reaches the bottom of the post it has to join a drainage route, and the sensible options are limited. The tidiest is usually an existing rainwater downpipe on the same elevation, joined with a swept branch or a hopper. Before that is agreed it is worth establishing that the pipe below ground is genuinely a surface water drain rather than a combined or foul run, and that it has capacity left.

Where there is no convenient downpipe, the alternatives are a back-inlet gully, a channel drain set into the paving along the front edge, a soakaway, or in modest cases a water butt. A soakaway is often right in a garden with no nearby drainage, but it needs sizing for the ground conditions and siting a sensible distance from the house. In England and Wales surface water drainage falls under Part H of the Building Regulations, and the general principle is that rainwater goes to a soakaway or watercourse in preference to the sewer where the ground allows. A water butt is fine provided its overflow goes somewhere sensible, because a full butt in November simply passes the problem on. Two things are worth stating plainly: water should never discharge onto a neighbour's land, and never against the house below damp-proof course level.

Leaves, Blockages and Cold Weather

An integrated gutter is a narrow channel with a small outlet, and it is entirely capable of blocking. If the veranda sits near trees the outlet clogs first, usually with a compacted mat of leaves, blossom and seed. Leaf guards, brush inserts and a removable basket at the outlet all help, but none removes the need to look. Twice a year is a reasonable habit: late autumn once the leaves have finished falling, and late spring after blossom and pollen. The gutter typically sits between 2.2 and 2.5 metres, which is a stepladder job, and the roof itself should never be stood on.

Cold weather deserves a mention because the concealed downpipe, elegant as it is, sits inside an aluminium post exposed to outside air on every face. In a hard frost that pipe is genuinely cold, and standing water in it or at the base spigot can freeze. The practical answer is to keep the run at the bottom short and continuously falling rather than laying a long horizontal length just under the paving. Snow is the other case: it can sit on a shallow pitch for days, melt during a mild afternoon and refreeze at the outlet overnight.

Settling It Before Anything Is Made

None of this is difficult, and none of it is a reason to worry about a veranda. It is a set of decisions that have to be taken in the right order, because the gutter, the outlets and the post carrying the pipe are all manufactured items. A survey that establishes where the existing downpipes are, what the patio falls towards and whether the ground will take a soakaway produces a structure that drains properly from the first day and asks almost nothing of you afterwards.

If you already know where the water on your elevation goes, that is useful to bring to the conversation, and photographs of the rear of the house including the ground and the downpipes are often more informative than a description. If you don't, it is exactly the sort of thing worth working through at survey stage — ten minutes before the order goes in, rather than a compromise afterwards.
