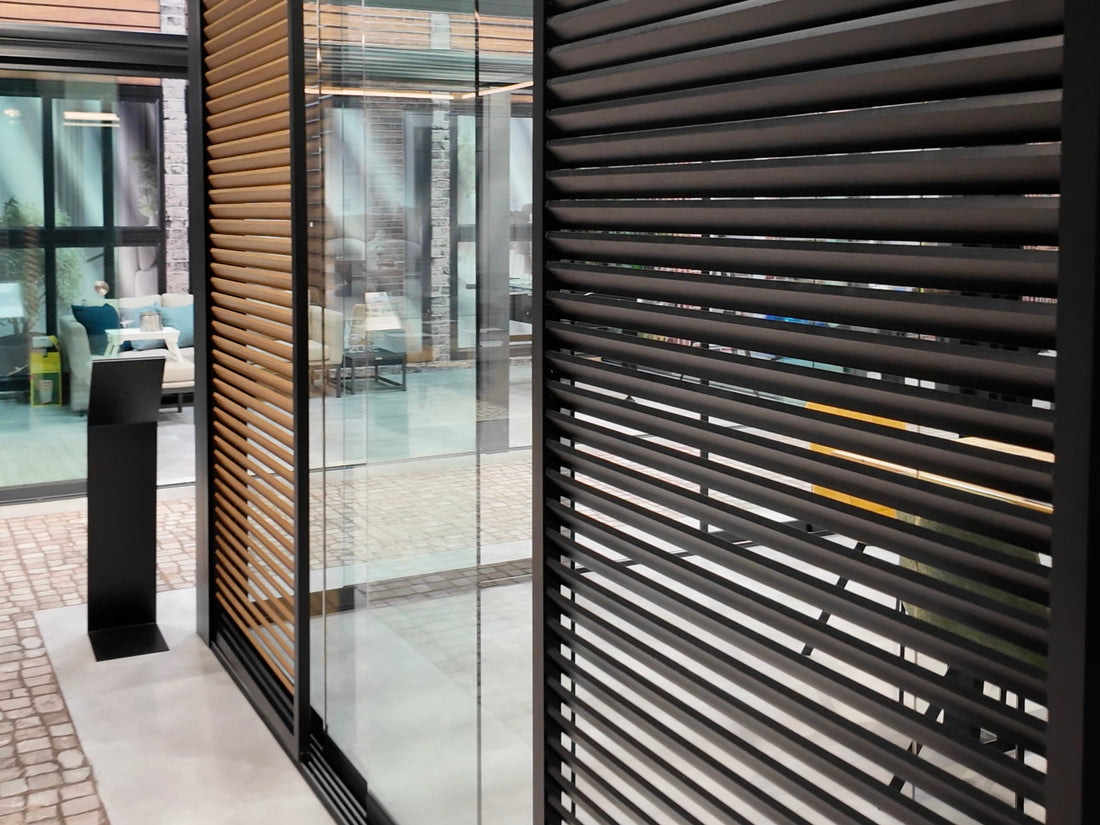

Mixing Glass Sliding Doors and Louvred Sliding Panels on One Rail

A west-facing veranda with glass sliding doors is a wonderful thing in April and a slightly punishing one at seven o'clock on a July evening. The sun drops below the front edge of the roof, comes in almost horizontally, and the glass that was keeping the wind out all spring turns into a very effective magnifier. People usually respond to this by asking whether they should have had screens instead of glass, which frames the whole thing as a choice between two products when it does not have to be.

The Fiano glass sliding doors and the Fiano louvred sliding panels run on the same railing system. That single fact opens up an option most people never get offered: one opening, one track assembly, glass on some of the rails and adjustable louvred panels on the others. The louvres sit outboard of the glass, so they shade and screen the doors from the outside rather than the inside. This guide explains how that is put together, when it is worth the extra money, and the things you need to settle before anything is ordered.

One Track Assembly, Two Kinds of Panel

The rail head on a Fiano sliding door system can be specified with anywhere between two and seven tracks. Each track carries one panel, and the panels pick each other up as they travel, so a single push at one end walks the whole run open. Most installations use three or four tracks because that is what it takes to close a typical veranda opening in panels of a sensible weight.

What is less widely known is that the louvred sliding panels are built to run in exactly the same rail. They are a sliding element with rotating blades held in a fixed frame and a concealed operating mechanism, so from a few feet away they read as a solid panel until you turn the louvres and the light comes through in bands. Because the two products share a track profile, you can order a rail head with more tracks than you need for glass and give the spare ones to louvred panels.

The usual arrangement is a six-track head with four glass panels on the inner rails and two louvred panels on the outer pair. You end up with a fully glazed opening that closes the veranda in, and, running in front of it, two shading panels that can be parked at one end and forgotten about or drawn across the glass on a hot evening.

Why It Matters That the Louvres Are Outside

Shading works best before the light reaches the glass, not after. Once sun has passed through a pane it has already deposited most of its heat inside the space, and an internal blind can only absorb it and re-radiate it into the same room. That is why an external shutter has always outperformed a curtain, and it is why putting the louvred panels on the outer rails rather than the inner ones is a deliberate decision rather than a coincidence of how the track happened to be laid out.

There is a privacy dimension to the same geometry. A neighbour or a passer-by sees the louvred face, not the glass behind it, so the panel is doing its screening at the outermost surface of the structure. Turn the blades to a shallow angle and you keep a downward view out towards the garden while cutting off the line of sight in from anyone standing at your fence line.

How a Six-Track Run Divides Up

Glass panels in the Fiano system run from 640mm to 1040mm wide, and the panel width is worked back from the clear opening once the track count is fixed. The louvred panels come in modules of 1040mm, ganged together to make up a run, with the widest standard configuration reaching 10.4 metres across ten panels. In practice the two panel types do not have to match each other in width, because they are on separate rails and never share an edge.

Heights are the constraint people forget. Glass sliding door installations run from 2,000mm to 2,500mm as standard, and the louvred panels cover opening heights from roughly 2,045mm up to around 2,595mm, adjustable to the opening they are going into. On a veranda with a shallow pitch, the height available at the low end of the roof is what governs the whole assembly, and that is a number worth establishing early rather than discovering late.

The other thing that has to be resolved on paper is where everything parks when it is open. Six panels stacked at one end occupy roughly six panel thicknesses plus the rail width, and that stack has to land somewhere that is not a doorway, a step or the only sensible route into the garden. Splitting the run so the panels stack at both ends is often the better answer, but it changes the track logic and cannot be retrofitted.

When the Mix Earns Its Money

This arrangement is not the right answer everywhere. On a north-facing veranda with no overlooking neighbours, it is money spent on a problem you do not have, and a plain three-track glass run will serve you better. It comes into its own in three situations.

The first is orientation. South and west elevations get low, direct evening sun that the roof cannot intercept, because the sun is below the roof line by the time it becomes uncomfortable. Nothing you do to the roof glazing fixes that; only something vertical does. The second is overlooking. A veranda that backs onto a shared path, a side street or a neighbour's upstairs window is often glazed and then never used at the times people actually want it, because it feels like sitting in a shop window. The third is a hot tub, a dining table or anything else that turns the space into a room you spend evenings in rather than a covered walkway.

Set against that, the mix costs more than glass alone, adds two more panels to move, and gives you a slightly deeper stack at the parking end. Louvred panels also do not seal in the way glazing does, which is the point of them, but it means they contribute nothing to keeping wind or rain out. They are a shading and screening layer sitting in front of the weather layer, and it is worth being clear with yourself about which of those two jobs you are actually trying to solve.

Getting the Specification Right Before You Order

Track count is the one decision that genuinely cannot be revisited. The rail head is a single extruded assembly fixed to the underside of the beam, and adding a pair of rails later means replacing it, which in most cases means taking the roof glazing out to get at it. If there is any chance you will want shading panels in a year or two, the sensible move is to specify the extra tracks now and add the louvred panels when you are ready. Empty rails cost very little; a second rail head costs a great deal.

Colour is worth a moment as well. The glass sliding doors are powder coated in RAL 7024 Graphite Grey or RAL 9005 Jet Black, while the louvred panels are offered in anthracite, black, white and a wood effect. Anthracite and graphite grey are close but not identical, and black to black is the safest match if you want the two systems to read as one piece of joinery rather than two products that happen to be next to each other. If you would rather they contrast deliberately, the wood effect against a graphite frame is the combination that tends to look intentional rather than accidental.

None of this is exotic engineering. It is simply a configuration that rarely gets suggested, because most quotations are built around one product at a time. If your veranda is on a sunny or overlooked elevation and you are weighing glass against screening, it is worth asking for both on the same rail before you settle on either. And if it turns out you only need the glass, that is a perfectly good answer too, and a cheaper one.
